PEDAX – Twinmaster 16 X+

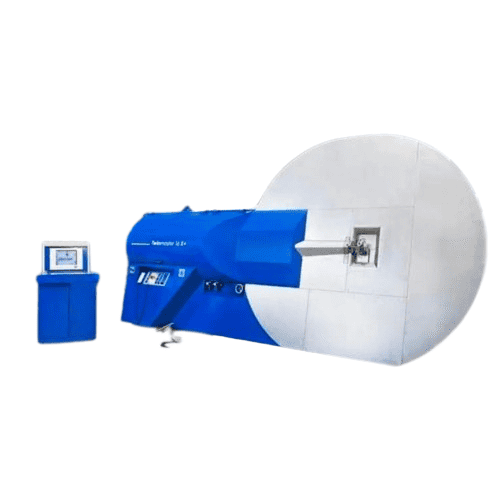

The Twinmaster 16 X+ is an automatic stirrup machine model with high output and maximum performance.

As an option, Twinmaster 16 X+ can be equipped with a 3D bending unit.

The machine processes hot-rolled and cold drawn wire in the range from 6 mm up to 16 mm and double strand up to 13 mm.

Differentiated roller sizes also give better straightening results for all diameters.

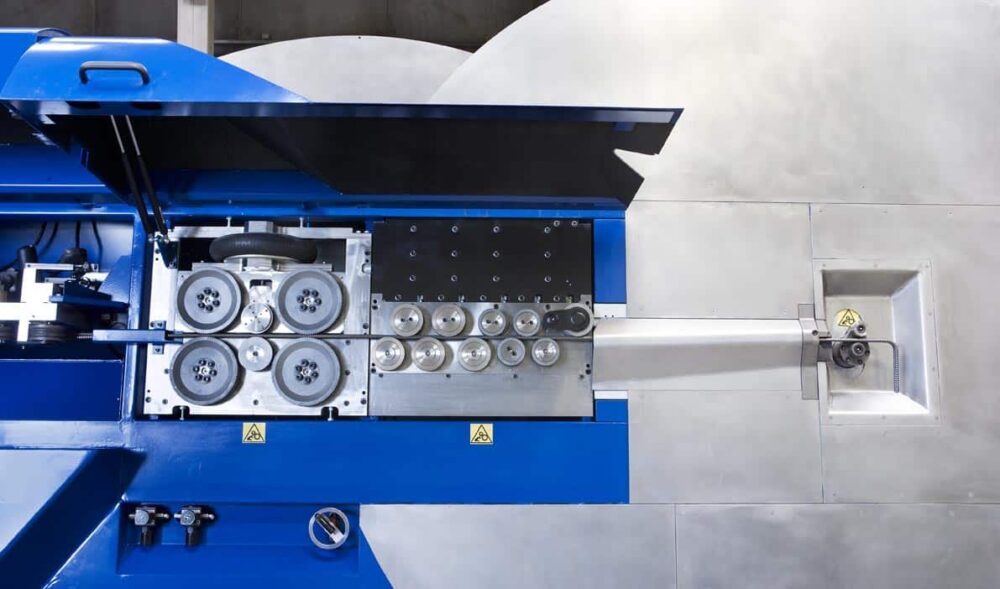

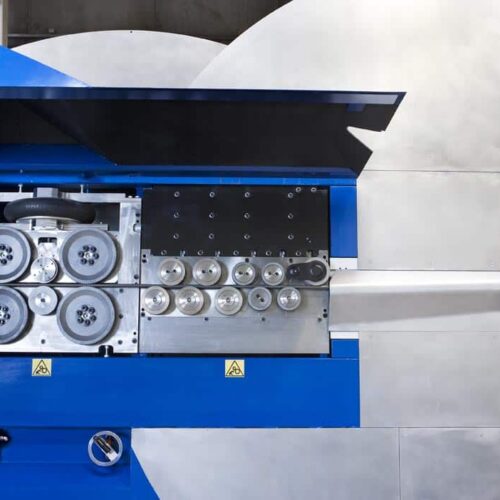

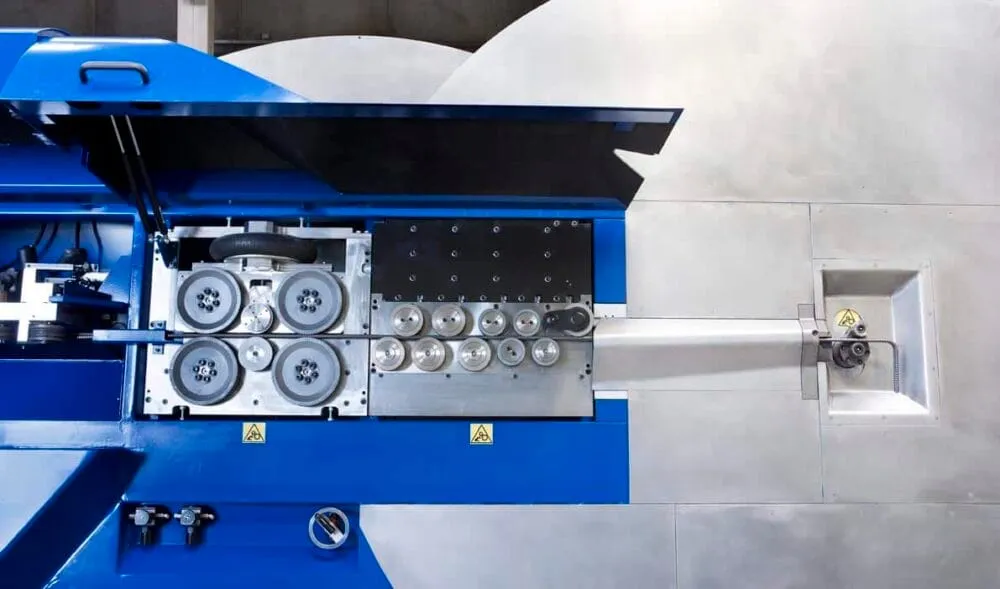

Twinmaster 16 X+ is equipped with further 2 fully automatic straightening units where each top roller is electronically adjusted by an electrical spindel motor and a high speed Lenze servo motor for the bending unit. The complete straightening units can be adjusted individually for each wire diameter and memorized in the computer system by means of 3 joysticks. Stainless steel front plate.

Twinmaster 16 X+:

  • Newest Lenze servo technique provides the highest bending and feeding speed
  • Powerful in-feed for trouble free processing of 16 mm at high speed
  • „Logic-Soft“ software for easy input of data

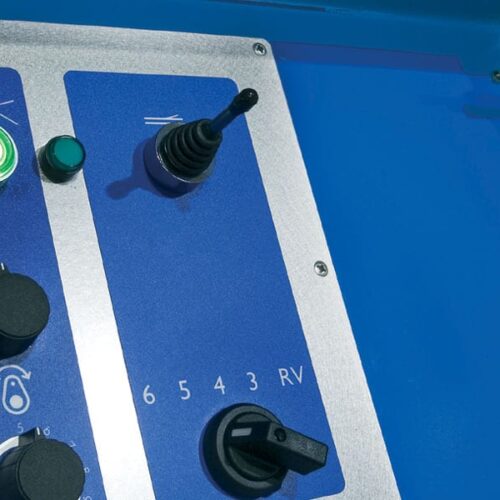

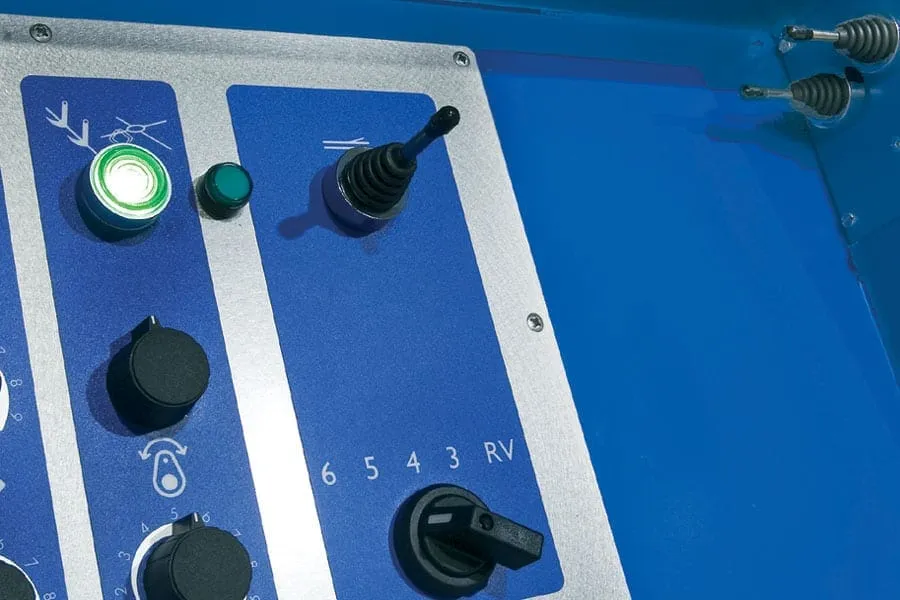

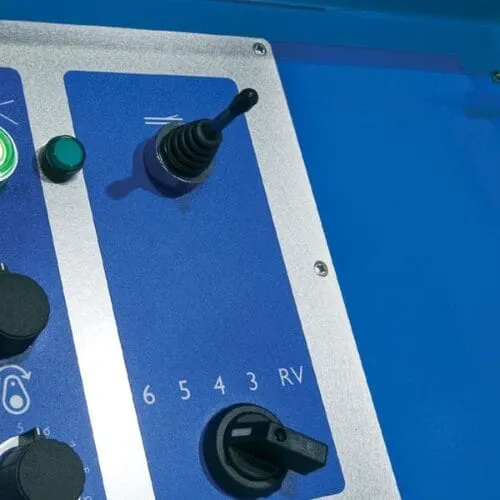

  • Joysticks for easy adjustment of the wire
  • Ergonomic PC console
  • Motorized adjustment of the mandrel height from the front of the machine as an option
  • Low noise impact
  • Operation- and service friendly
  • Ergonomic design

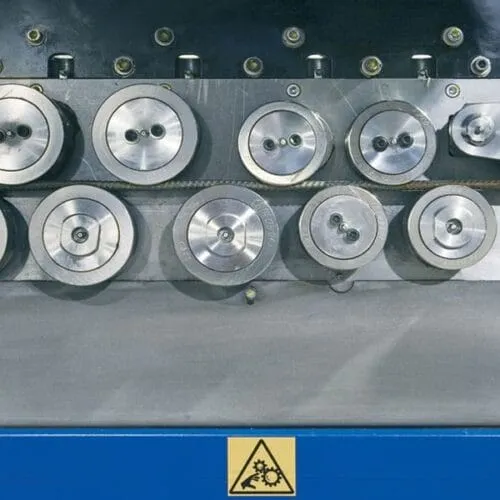

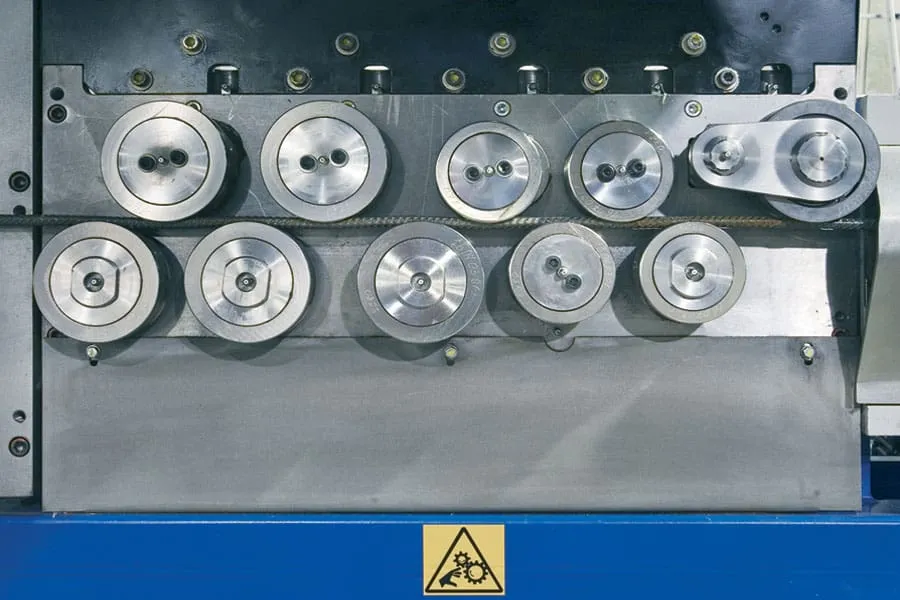

  • Anti-Twist system
  • 3D bending unit
  • Spiral bending
